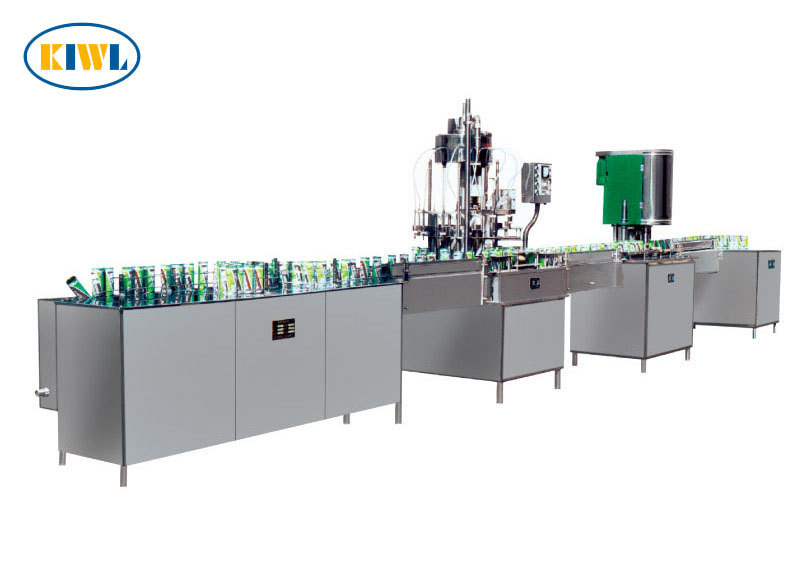

1. The cans filling production line is mainly used for beverage operations: the cans juice filling production line integrates the two functions of filling and capping into one.



2. The whole process is automatic, applicable to filling juice and mineral water in two-piece cans and three-piece tinplate cans. It can also be hot filled with temperature control device,



3. The adjustment of various parts to the bottle shape is realized by rotating the handle, which is easy, convenient and fast,



4. Filling method: the new type of micro-pressure filling is adopted to make the filling speed faster and more stable, so the machine has higher output and greater benefits compared with machines of the same specification.



5. The can filling production line is highly automated and easy to operate. It is suitable for filling wine, soy sauce, and other materials in glass bottles. Its sealing method can be matched with metal anti-theft cap and plastic cap, which is the ideal equipment for beverage manufacturers.



This machine adopts the normal pressure filling principle on the basis of digesting and absorbing the domestic and foreign (excluding steam) cans filling and sealing machines (sealing machines). When the empty cans enter the lifting tray through the pulley, the filling valve and the empty cans are aligned, the empty cans are raised and sealed, and the valve port of the filling valve is automatically opened. When the filling liquid level blocks the return pipe port of the valve, the filling is stopped. The filled can is sent to the sealing machine head through the hook chain, and the cover is sent to the tank mouth through the cap feeder and the pressure head. When the can supporting mechanism is raised, the pressure head presses the tank mouth, and the sealing wheel is pre-sealed and then sealed. After the can is sealed, it is pushed out by the head of the capping mechanism, and then transported out of the tank.



This machine adopts PLC frequency converter and human-machine interface control system. It has advanced control technologies such as variable frequency speed regulation, automatic filling with cans, and no filling without cans. Through various sensors on the device, the accurate production speed and production quantity can be displayed on the touch screen. The production speed can be set on the touch screen according to user requirements. The complete machine has various protections for the main motor and other electrical appliances, such as overload, overvoltage, etc. At the same time, various corresponding faults will be automatically displayed on the touch screen, which is convenient for users to find out the cause of the fault. The main electrical components of this machine adopt international famous brands, and can also be made according to customer requirements.



Main features of the can filling production line:



(1) The fruit juice filling production line has compact structure, complete control system, convenient operation and high degree of automation;



(2) The bottle shape can be changed only by replacing part of the star wheel and the arc guide plate;



(3) The parts in contact with the materials are made of high-quality stainless steel, without process dead angle and easy to clean;



(4) High-speed filling valve is adopted, the liquid level is accurate without liquid loss, ensuring the filling process requirements;



(5) The capping head adopts a magnetic constant torque device to ensure the capping quality without damaging the bottle cap;



(6) . Adopt efficient capping system with perfect automatic control and protection device;



(7) . Equipped with perfect overload protection device, which can effectively protect the safety of equipment and operators;



(8) The control system has the functions of production speed control, cap shortage detection, automatic stop of bottle jam and output counting;



(9) The operation of the can filling production line adopts advanced touch screen control, which can realize human-machine dialogue operation.
